REQY 5-pack 48ft Container Wagon

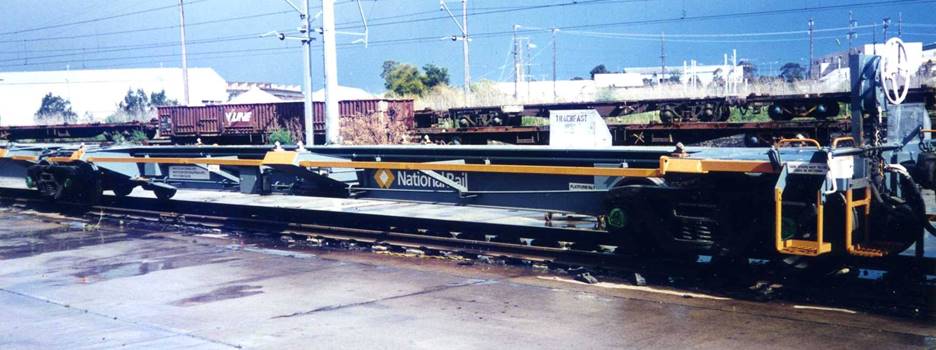

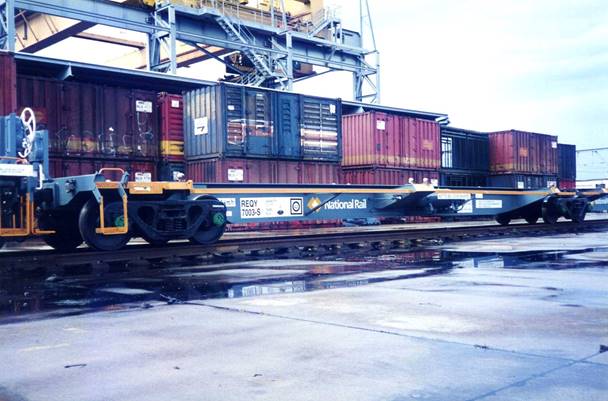

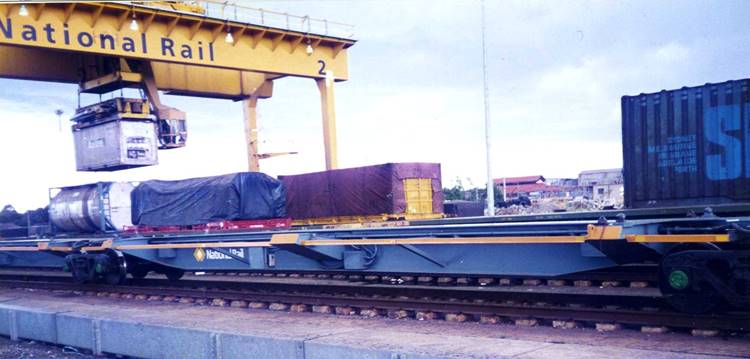

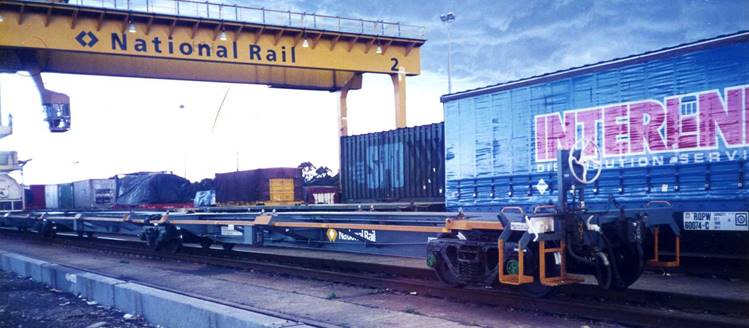

Brand new REQY at Trackfast, Chullora in Oct 1994. All
Graham Baker photos on this page.
Upon creation National Rail commissioned many
new low deck, low tare, high speed container wagons for its new Intermodal business.
NRC needed wagons capable of carrying 48ft containers especially. The wagon was
designed by Australian National in 1994, and the first set REQY 7003 underwent
trials in mid 1994.
The REQY was fitted with equipment and 415V cabling
to provide power to reefer containers but was equipment was later removed but
the junction boxes still remain. The 5 permanently
coupled platform sets can carry either 5 x 40ft, 48ft containers or 46ft
Reefers, or 10 x 20ft containers.
Builders: REQY
7003S was built at AN’s Islington Workshops in 1994.
Length: 77.86m (5 x 15.56m units) Tare: 60.3t Capacity: 215.7t Gross: 276t
Bogies: Bradken Kendall 70t Ride Control with 840mm dia wheels and TRIAX bogie mounted brake system.
Coding:
-
As
introduced, REQY
-
Recoded
RQQY shortly after introduction.
Colour
Scheme:
-
As
introduced, painted in standard NRC grey and marigold.
Modifications:
Electrical system cabling and plugs removed but junction boxes remained, when
recoded RQQY.
Similar
Vehicles: REQY became the prototype for the RQQY
Period of
Service: 1994 to current
Operation:
Used in NRC/PN Intermodal trains on the SG rail network.
Modelling:
No RTR or kit model is available, so
it will need to be scratchbuilt.
General Outline W1-328 drawing for
RQQY available here.

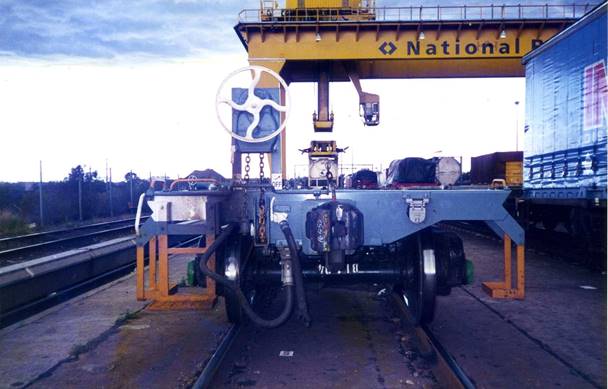

Headstock showing 415v socket.

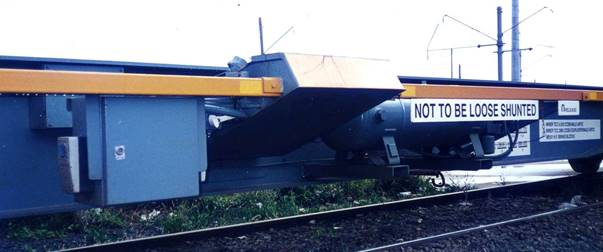

Junction box with plug socket and switch

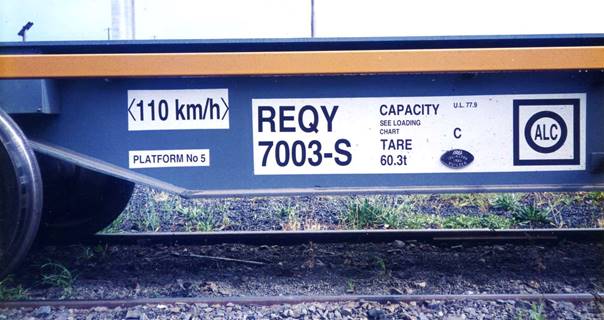

Codeboard details and builder’s plate.

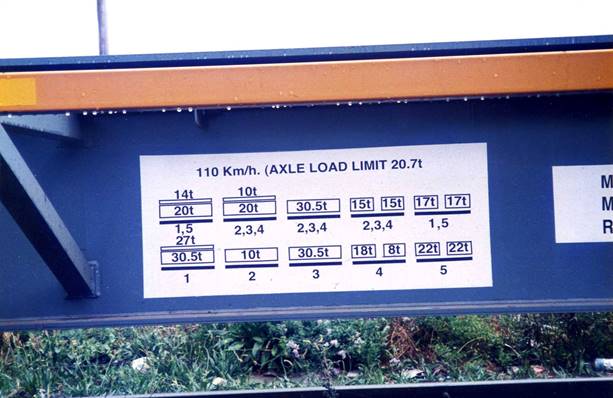

Container weight distribution and loading guide.

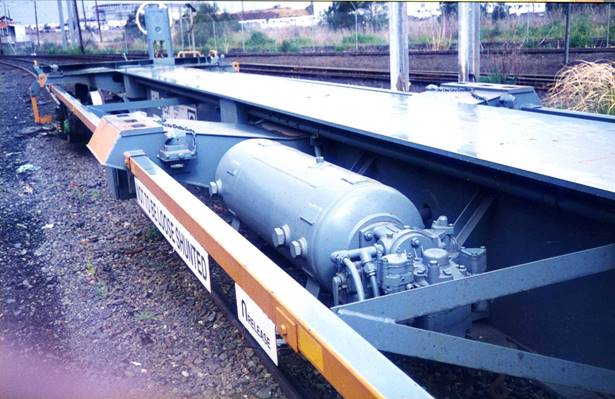

Triple valve and combination reservoir on platform
1 and 5.
Side view of end platform

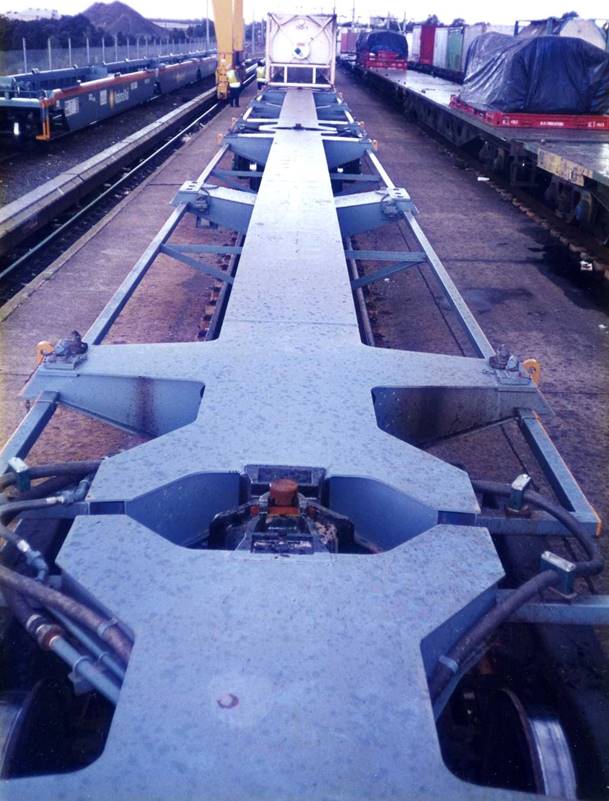

End platform deck
Intermediate platform deck
Intermediate Platform 4
End Platform 5

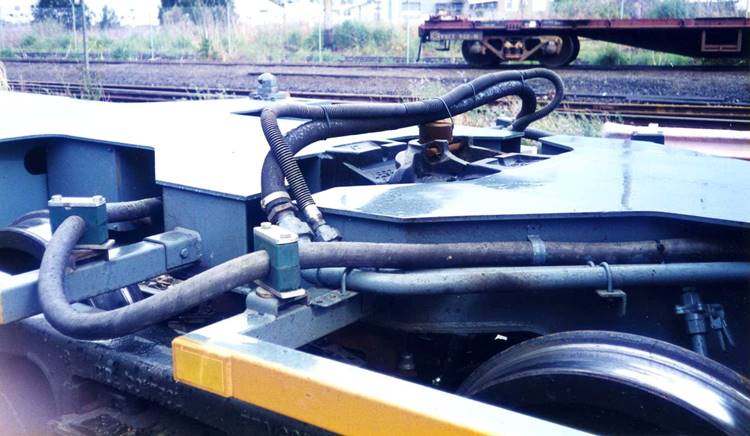

Articulated Connecter between P1 and P2 with
415v cabling going over pivot pin.
