RCKF Jumbo Coil Wagon

As demands for Jumbo coil increased over medium size coils, more wagons capable of carrying Jumbo coils were needed. These wagons were converted from RCSF coil wagons in 2004. The centre medium coil cradle was retained and the rest were removed. In their place, a cradle for carrying Jumbo coils was fitted at each end.

Length: 12.3m Tare: 22t Capacity: 70t Gross: 90t

Bogies: XCL

Running Numbers: 15-T, 18-A, 24-S, 32-X, 60-Y, 74-M, 87-B

Colour Schemes:

As can be seen from the photos, some were only ‘touched up’ where modification work has been done. Others have had a full repaint.

Modelling:

- The wagon can be converted from a BGB VR CSX kit as described in the following article by S.Pracy and D.Willoughby – Modelling the RCKF

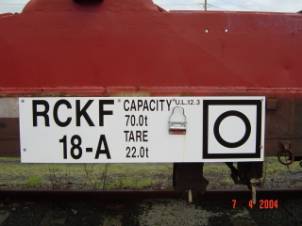

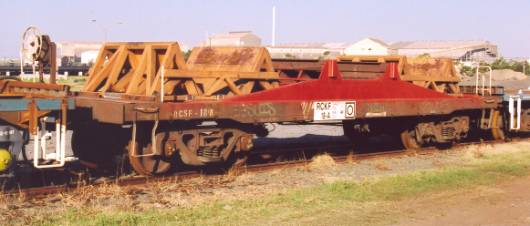

RCKF Codeboard RCKF 18A in service S.Pracy Photo

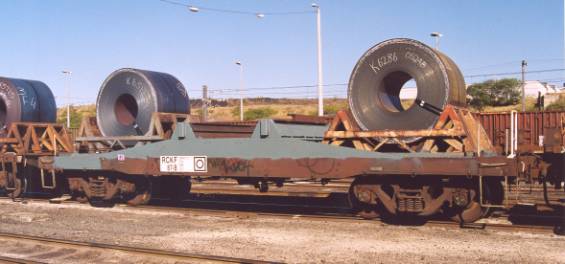

RCKF 24S in service
