RCX Coil Steel Wagon



A train on the railway tracks Description automatically generated with medium confidence

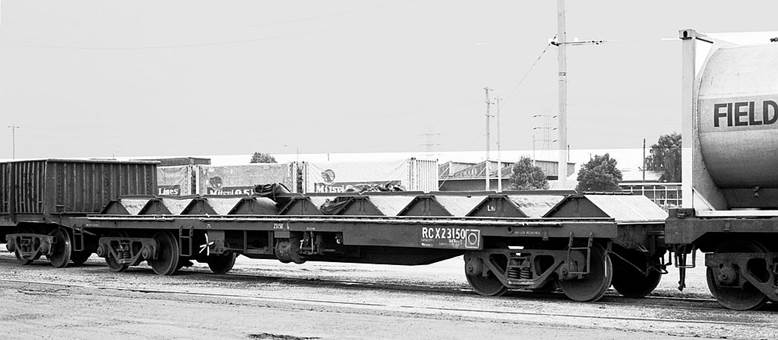

RCX 23150 at South Dynon in November 1978.                                                                                            Rob O’Regan



These wagons were converted from EMX flat wagons in 1977. Their timber decks were removed and rubber lined cradles for 8 Coil steel rolls were fitted.



 Running Numbers: 21 were converted, their numbers are: 23121, 23122, 23124, 23126, 23130, 23131, 23133, 23134, 23135, 23137, 23138, 23140, 23141, 23142, 23143, 23144, 23145, 23147, 23150, 23155, 23156.



Length: 13.72m                       Width: 2.74m                          Height: 1.8m

Tare: 25t                                 Capacity: 51t (later 55t)          Gross: 76t (later 80t)               Equiv Length: 2.2



Bogies: XCL, XC and XCG



Coding:

-                      Originally RCX,

-                      Recoded NCRX after 1979,

-                      Recoded RCRX when transferred to NRC.



Colour Scheme:

-                      Painted gunmetal grey with white lettering upon conversion. Some received SRA red and NRC grey liveries with ownership changes.



Period of Service: 1977 – 2005.



Operation: Used exclusively on steel services throughout the SG network.



Modelling: PLAN - Wagon has to be scratchbuilt.



A train on the tracks Description automatically generated with low confidence

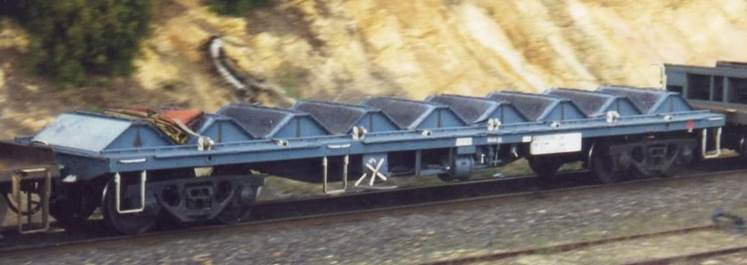

NCRX 23143 on VR XC bogies stored at Goulburn in 1996.                                     Norm Bray photo



A picture containing ground, outdoor Description automatically generated

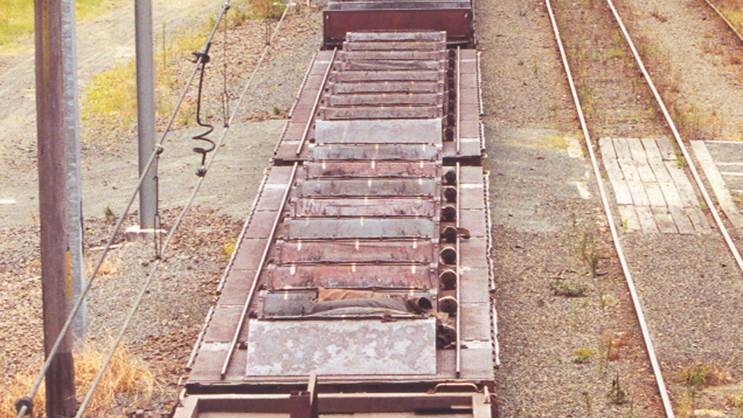

Deck detail of the wagon at Leightonfield in early 00s.



A picture containing outdoor, grass, tree, track Description automatically generated

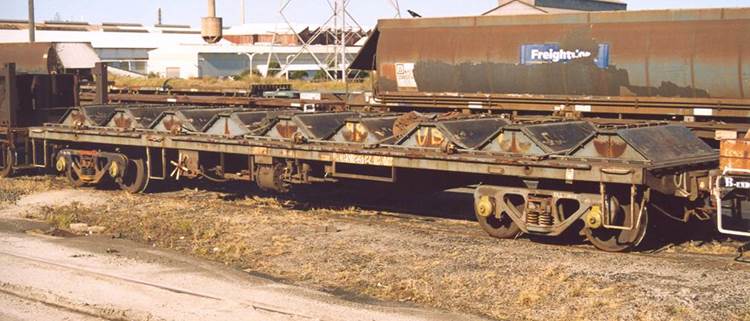

RCRX 23133H at Leightonfield.                                                                                                                     Steve Pracy



A picture containing ground, transport, outdoor, train Description automatically generated

NRC grey liveried RCRX on a SteelLink service in the early 00s.                                         Norm Bray photo



A train on the railway tracks Description automatically generated with medium confidence

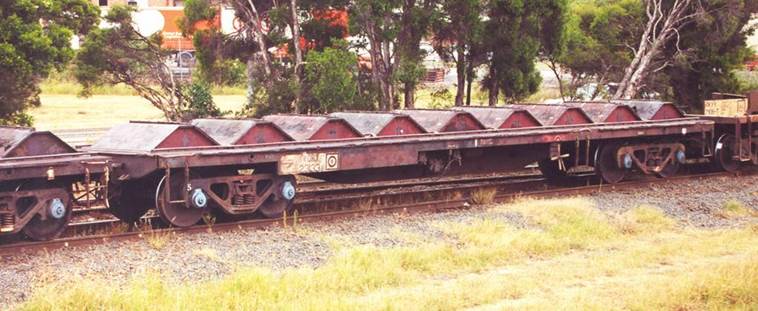

RCRX 23124K at Port Kembla North Yard.                                                                                       Steve Pracy



A picture containing outdoor, transport, old, sandy Description automatically generated

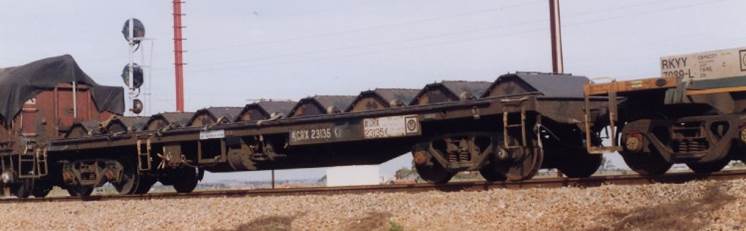

RCRX 23135 on a SteelLink service in Victoria during the early 00’s.                                             Justin Moy
