NQAY/RQAY 3 TEU Container Wagon

Do you have an overhead picture of an empty freshly painted NQAY? If so email it here

The NQAY, introduced in 1981, was the first NSW 60’ container wagon without a solid deck. This meant that the containers had to be unloaded before they could be accessed. The 96 surviving wagons were transferred to NRC in 1994.

Builders:

- Electric Power Transmission built the 100 NQAY wagons in 1981 and are numbered 21851 to 21950.

Length: 19.2 m Tare: 20 t Capacity: 54 t Gross: 74 t

Bogies: YCM

Coding:

- Introduced shortly after the ROA recoding as NQAY, they never had a three letter code, They were never converted or recoded in NSW service.

- Recoded RQAY when transferred to NRC in 1994, kept the original numbers.

Colour Scheme:

- Some were repainted in SRA red

- Following the transfer to NRC many were repainted in the NR grey colour.

Operation:

- The NQAYs were pooled with the other NSW 60’ high-speed container wagons (NQOY and derivatives) and worked primarily on interstate services.

-

Modelling:

No HO model available.

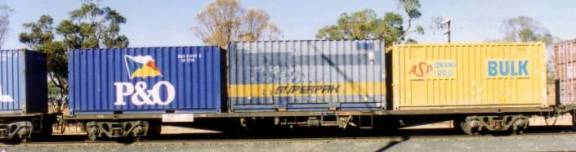

RQAY 21888 S (top) and 21893 E marshalled side by side on a train at Goobang, August 1995

Roger Jones

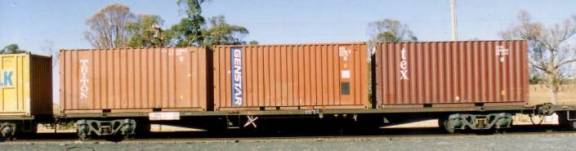

Low afternoon sun makes the underframe details of RQAY 21884 M visible, Parkes June 1997

Roger Jones

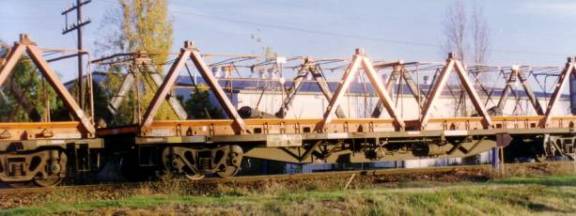

The deck layout is shown in this shot of RQAY 21865 V at Goobang Roger Jones

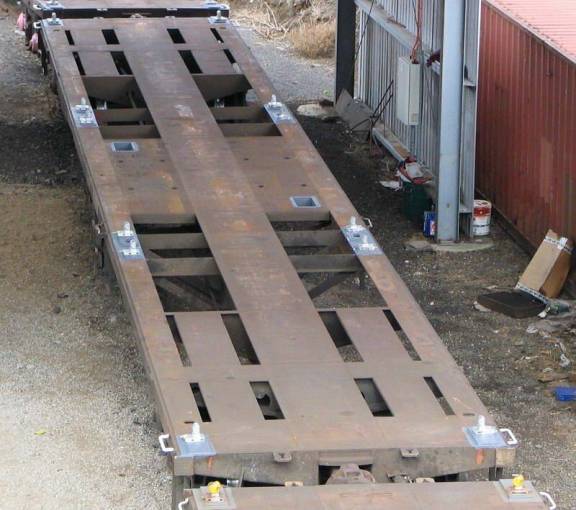

A view of a deck of a RQAY. Graham Baker
