GME ISO Container
Wagon
Photo required.
These vehicles were modified from FME LCL container wagons. The LCL container brackets were removed and the deck was fitted with corner retaining brackets for 2 20ft ISO shipping containers.
Builder:
20 wagons were
converted in the railways own workshops in 196x and retained their original
|
|
To FME |
To GME |
to other |
|
To FME |
To GME |
to other |
|
2699 |
|
|
|
26473 |
|
|
|
|
24394 |
|
|
|
26479 |
|
|
|
|
24450 |
|
|
|
26488 |
|
|
|
|
26335 |
5/53 |
6/70 |
|
26496 |
|
|
|
|
26356 |
5/53 |
1970 |
|
26498 |
3/53 |
1/69 |
|
|
26408 |
|
|
|
26502 |
|
|
|
|
26426 |
3/53 |
12/68 |
|
26508 |
7/53 |
4/70 |
|
|
26430 |
|
|
|
26512 |
|
|
|
|
26446 |
|
|
|
26513 |
3/53 |
2/69 |
|
|
26465 |
|
|
|
26517 |
|
|
|
Length: 13.72m Tare: 19t Capacity: 42t Gross: 62t Equiv Length: 2.2
Bogies: 2CF
Coding:
- Originally coded GME,
- Recoded NQUF after 1979.
Colour Scheme:
- As introduced, they were painted in the standard Gunmetal grey all over. Lettering was white.
Modifications:
Related Wagons:
Period of Service:
Operation:
Further

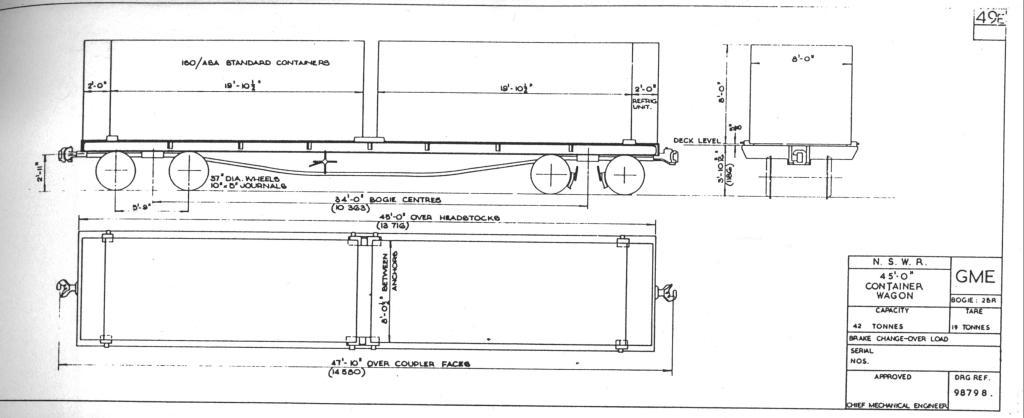

Plan: GME Plan
Modelling:
- Sydney Hobbies have a HO scale kit, which is available from Casula Hobbies.
- A model could also be kitbashed, using an AR Kits MLE flat wagon as a starting point.
